QEMU

复现问题

(qemu) xp 0x09000010
PL011State::read: Bad offset 09000010: 0x00000000
(qemu)
$ grep "Bad offset" rust/hw/char/pl011/src/device.rs
                log_mask_ln!(Log::GuestError, "PL011State::read: Bad offset {offset}");
                "PL011State::write: Bad offset {offset} value {value}"
$

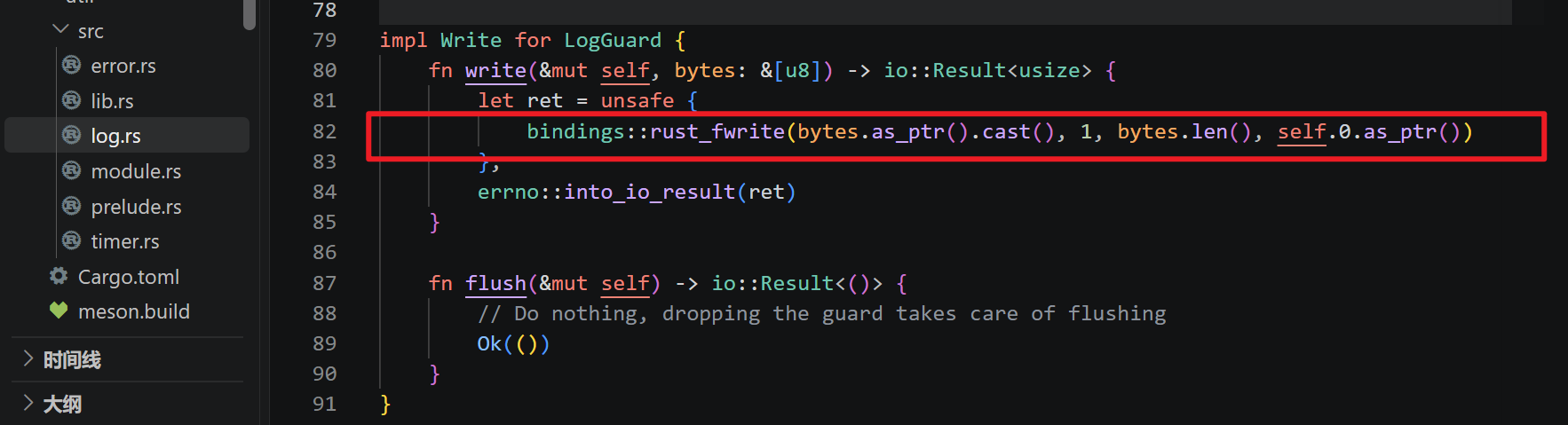

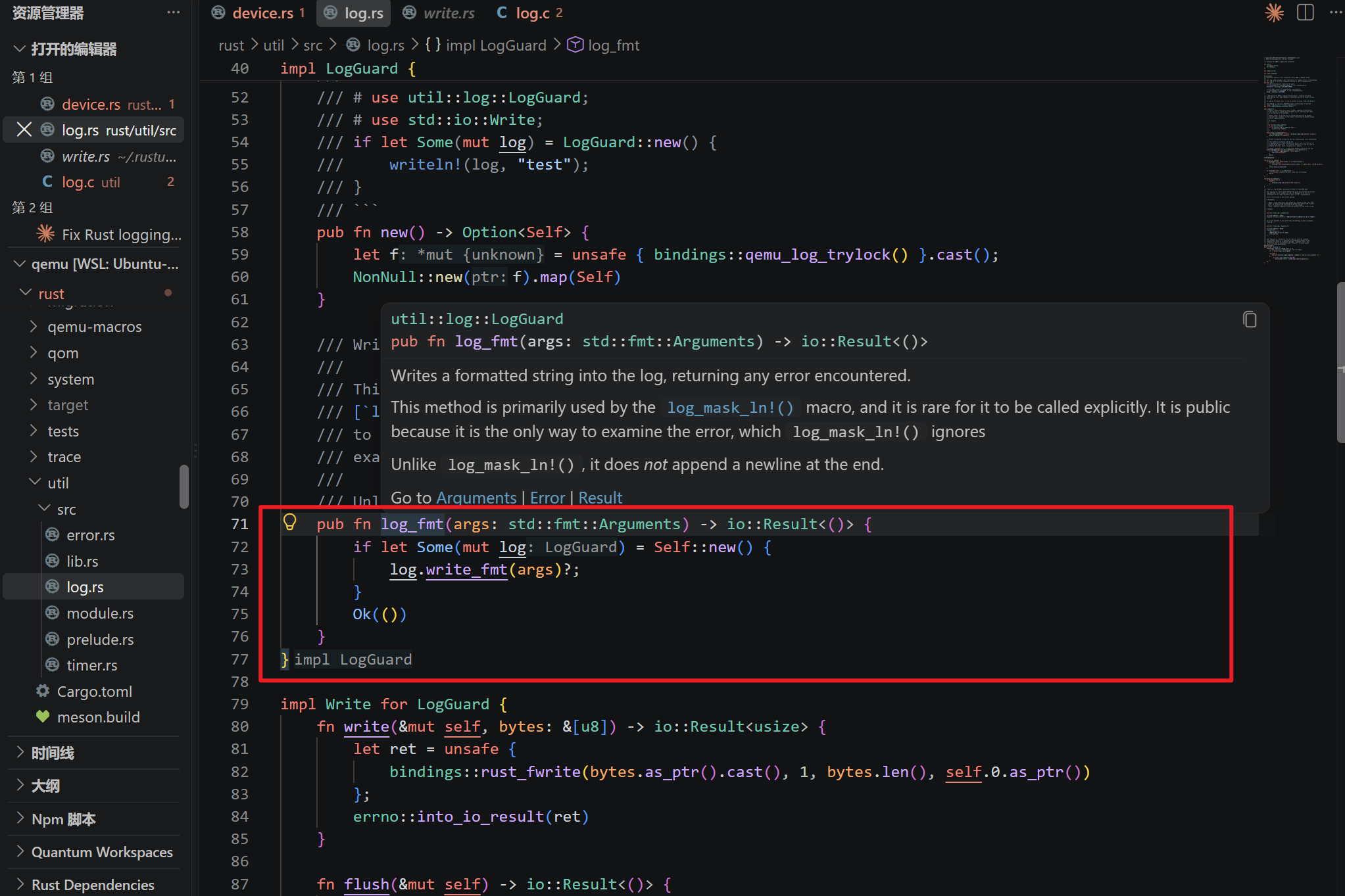

找到Rust FFI键绑定

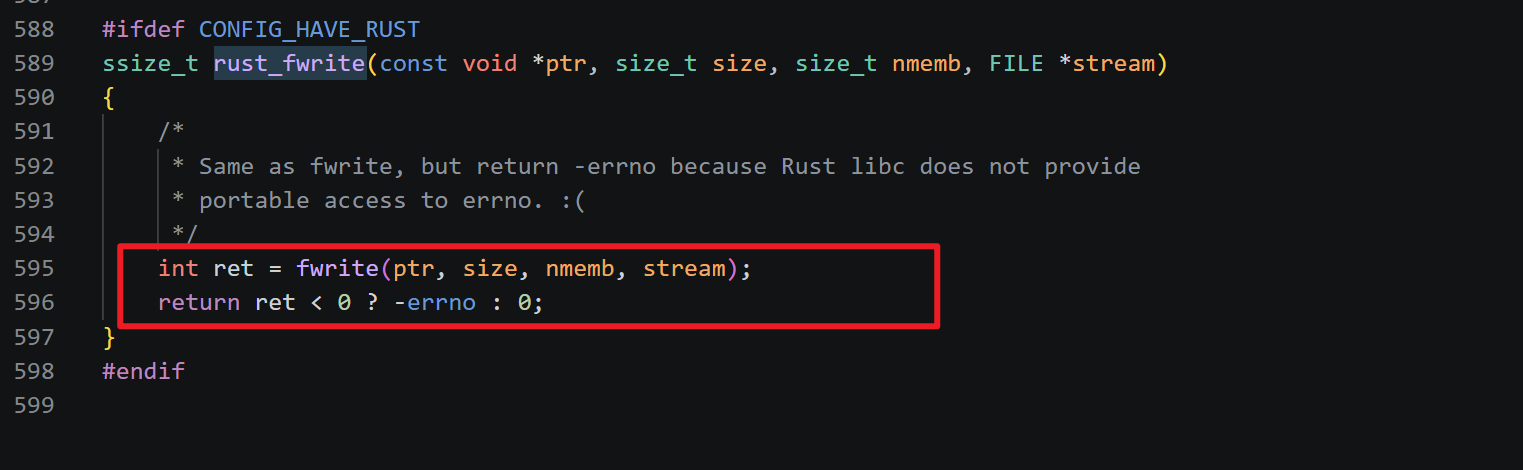

$ grep -rn "rust_fwrite" --include="*.c"
util/log.c:589:ssize_t rust_fwrite(const void *ptr, size_t size, size_t nmemb, FILE *stream)

这里出现了一个明显的错误，fwrite的返回值没有被使用。

修复：

return ret < 0 ? -errno : (ssize_t)(ret * size);

验证修复

(qemu) xp 0x09000010
PL011State::read: Bad offset 16
09000010: 0x00000000
(qemu)

附录

启动gdb对rust_fwrite进行调试：

[*#0] 0x5555568e209c <rust_fwrite+0x2f>
[...]
-------------------------------------------------------------------------------
gef> p ret
$1 = 0x0
gef> p size  # 每个元素字节大小
$2 = 0x1
gef> p nmemb # 要写入的元素个数
$3 = 0x1d
gef> p stream # 文件流指针
$4 = (FILE *) 0x7ffff7e1b6a0 <_IO_2_1_stderr_>
gef> list
590     {
591         /*
592          * Same as fwrite, but return -errno because Rust libc does not provide
593          * portable access to errno. :(
594          */
595         int ret = fwrite(ptr, size, nmemb, stream);
596         printf("ret=%d, size=%zu, returning=%ld\n", ret, size, ret * size);
597
598         return ret < 0 ? -errno : (ssize_t)(ret * size);
599     }
gef>
